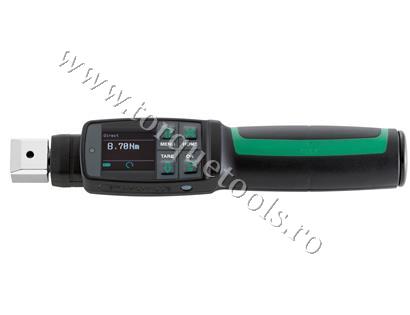

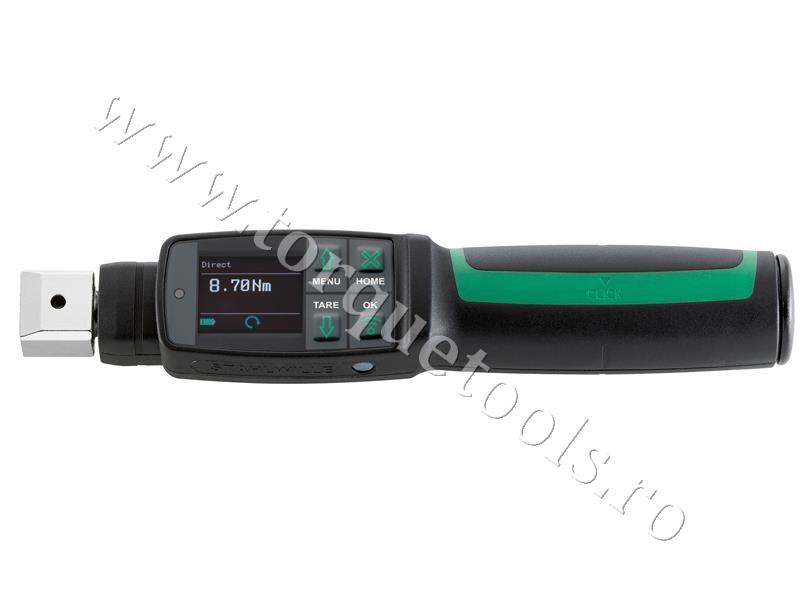

Stahlwille 96500904 - Cheie dinamometrica digitala 4-40 Nm
In stoc producator
Cod:
96500904
Garantie:
12 Luni
Greutate:
420g
Clasa:
Profesionale
|
|
Detalii produs Inapoi

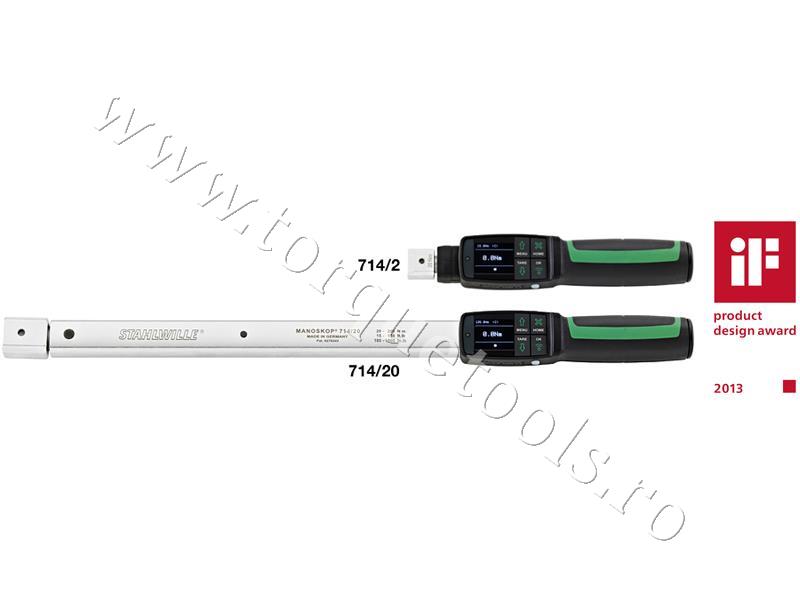

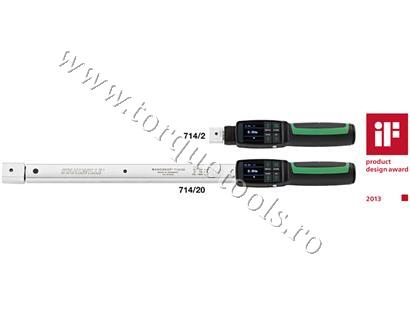

714 - Basic wrenches with tool carrier for insert tools
MANOSKOP® 714 - indicating and cut-out
Electromechanical torque and angle-controlled wrench
- 4 measuring modes (torque, angle, torque backed up by angle, angle backed up by torque)

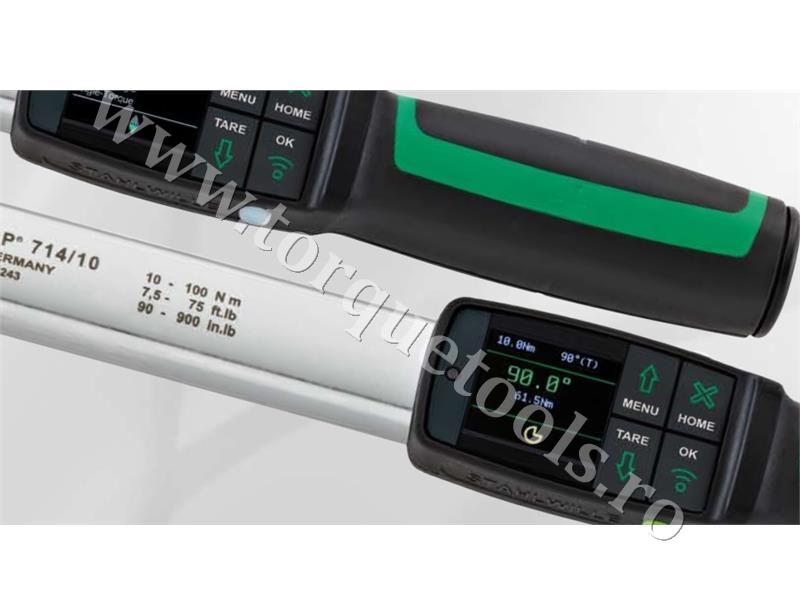

- high-definition colour display with additional side-mounted indicator lamps
- freely configurable menu structure
- optionally: Li-ion battery No 7195-2 and charger No 7160
- 3 function modes: cut-out, peak (indicating mode with peak value) and track (indicating mode with current value)
- Micro USB 2.0 interface
- bayonet connection for battery compartment
- QuickRelease safety lock change system for insert tools
- angle-controlled measurement without a reference arm
- as many as 200 joints can be programmed in up to 25 preset sequences.
- different tolerance limits can be set for each joint
- acoustic and visual assessment of the joint
- rapid, accurate setting via keypad
- the automatic keypad lock prevents inadvertent changes
- overload protection by means of acoustic and visual signals and a fail-safe system (clockwise)
- automatic notification of the next calibration date, either by the number of joints or the time interval
- fully automated calibrating and adjusting using the perfectControl calibrating and adjusting unit No 7794-2 (torque) or 7794-3 (torque and angle)
- units of measure: N m, ft.lb, in.lb.
- tightening torque is automatically corrected if a deviating extension is entered
- immediately reusable after release
- clockwise and anticlockwise tightening - it may be necessary to refit the insert tool rotated through 180° for anticlockwise tightening in the cut-out mode
- tactile and acoustic trigger signal.
- torque and angle are simultaneously visible
- all readings are independent of the point of application of force (with sizes 1, 2 and 4)
- safe handling due to ergonomically designed handle (resistant to oils, grease, fuels, brake fluid and Skydrol)
- 2 certificates (torque, angle)
- in sturdy plastic case (size 40 in steel case)
- design patent, patent
- supplied with Sensomaster software, USB cable, 4 AAA/LR03 micro-batteries, 1.5 V. AAA, 1.2 V, micro NiMH rechargeable batteries can be used
- display resolution, angle 0.1°
- display deviation value, angle ±1%, ±1 digit
- display resolution, torque ≤ 40 N m: 0.01 N m; > 40 N m: 0.1 N m
- display deviation value, angle ±2%, ±1 digit
Date tehnice
Date tehnice:
- Domeniul de actiune:
- 4 - 40 Nm
- 3 - 30 ft.lb
- 36 - 360 in.lb
- Prindere capete 9x12mm

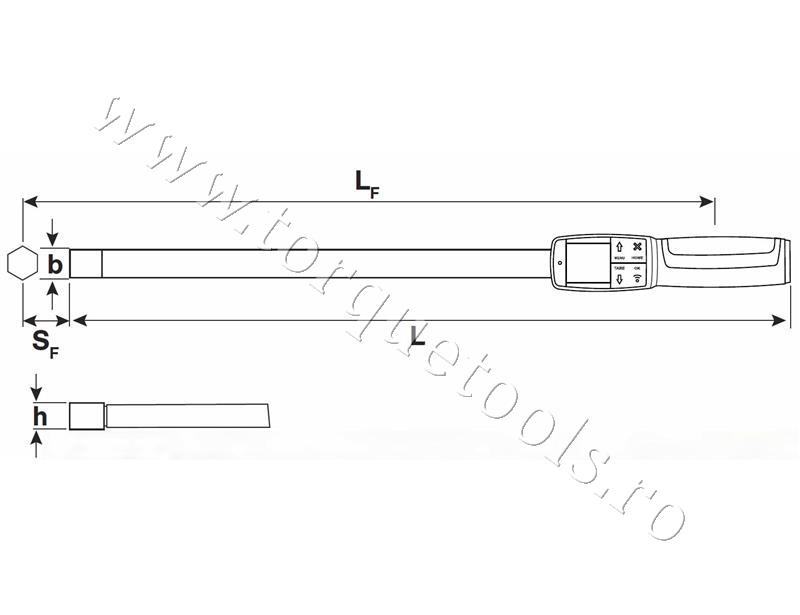

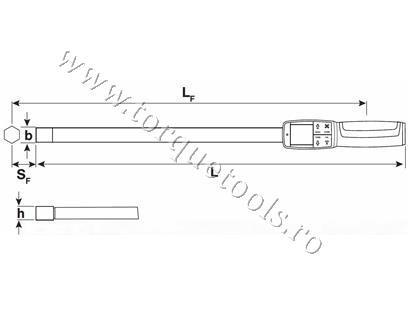

- Dimensiuni:
- b = 28mm
- h = 23mm
- L = 252mm
- Lf=214mm
- Sf=17,5mm
- Greutate: 420g
Ambalare
Cutie solida din plastic
Pachetul contine
Pachetul contine:
- Cheie dinamometrica: 1 buc
- Software management date SENSOMASTER
- Cablu USB
- 4 Baterii AAA
- Certificat de calibrare pentru strangere emis de producator
- Certificat de calibrare pentru unghi, emis de producator
- Certificat de conformitate
- Certificat de garantie
Informatii utile
Putem asigura urmatoarele servicii:
- Punere in functiune si instruire utilizare cheie dinamometrica
- Instalare/instruire software management date (Sensomaster)
- Update software management date
- Update firmware cheie dinamometrica
- Certificate calibrare emise de catre un birou agreeat B.R.M.L.
- Recertificari
- Recalibrari
- Service
Aceste servicii sunt taxabile si nu sunt incluse in pretul cheii dinamometrice.
Pentru oferta personalizata va rugam sa ne contactati.
Accesorii
Putem oferi diverse tipuri de accesorii pentru diverse aplicatii.
